- 4G, Ethernet and WIFI Connectivity
- Modern, Ergonomic Design
- Supports Dynamic Load Distribution
- RFID Card Capable/QR Code Capable
- Universally Compatible J1772 Connector
- NEMA 3R Protection for Indoor and Outdoor Installations
- Flexible 16’ cable to minimize clutter and potential cable damage.
- Certified to function at temperatures between -22 °F to 122 °F
- Wall and Pedestal Mountable
- Multiple Authentication Methods – Web, RFID, or TurnOnGreen App

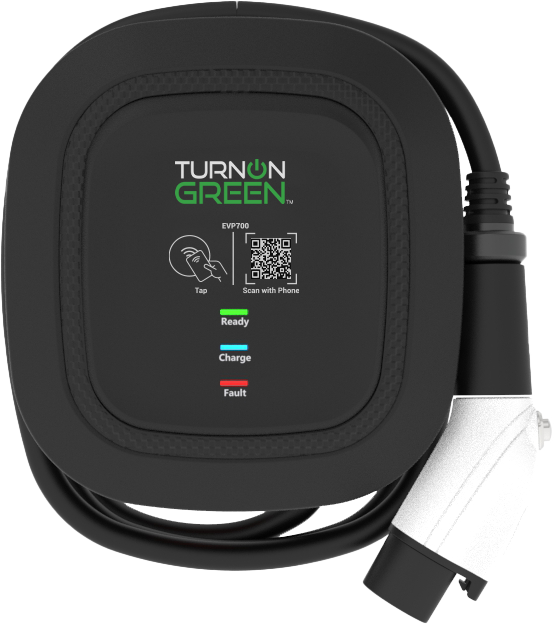

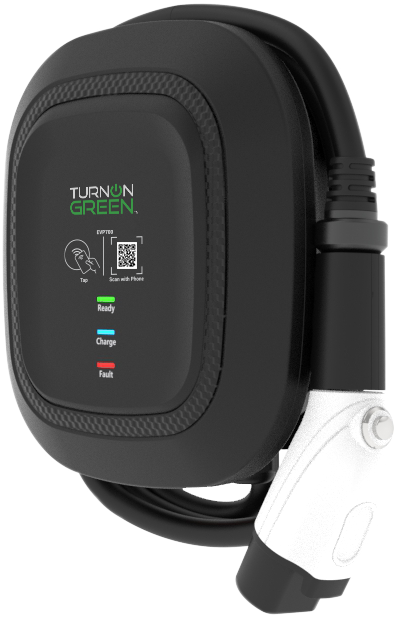

EVP700 (7kW)
LEVEL 2 CHARGER (32A)
The EVP700’s reliability, modern design, and small footprint makes it the ideal choice for locations where EV drivers are parking for 4-8 hours at a time. Hotels, workplaces, multifamily properties and municipal parking lots are well suited to use the EVP700 level 2 EV charger.
Features
Documents
Features
EVP700 Highlights
7kW Power Output
EVP700 is on the standard Level 2 EV charger. Gain upwards 25-30 miles of range per hour of charging with 7kW of power output, or a full battery overnight.
Smart Charger
Configure EVP700 for paid authentication, live monitoring, and set permissions on the TurnOnGreen Dashboard. Stay in control of your charging site.
Level 2 EV Charging for Commercial Use
Network Capability
The TurnOnGreen Dashboard is a comprehensive, cloud-based EV charger management platform. The dashboard provides a user-friendly interface with useful features for any size business to monitor and manage EV chargers with ease.
- View and analyze real-time charging data
- Track costs and adjust pricing
- Manage power with advanced active load balancing
- Manage users and set permissions
- Automatic report generation, downloadable at any time
- 24/7 support available via SMS, in-app messaging, or toll-free number
Ideal for Long Dwell Charging
EV drivers who are parking their vehicle for long periods of time often look for a standard 7kW level 2 EV charger. The EVP700 can fully charge a battery electric vehicle in 6-8 hours (depending on the vehicle and state of charge). Charging overnight when the cost of power is low makes this unit perfect for hotels and commercial properties in areas with high Time of Use (TOU) rates.
Who Trusts EVP700
Companies spanning various industries trust EVP700 for their electric vehicle charging needs. From municipalities in Southern California firms to nationwide hotel chains, EVP700’s reliability and versatility make it the preferred choice for a diverse range of businesses committed to the EV charging movement.
Installation Types
See how EVP700 fits on your property.
Wall Mount
Mount EVP700 on any wall and manage cables with a hook or wrap.
Dual Mount
Single, or back-to-back dual configuration.
Dual Mount
Mount two forward facing EVP700s on a triangle pedestal.

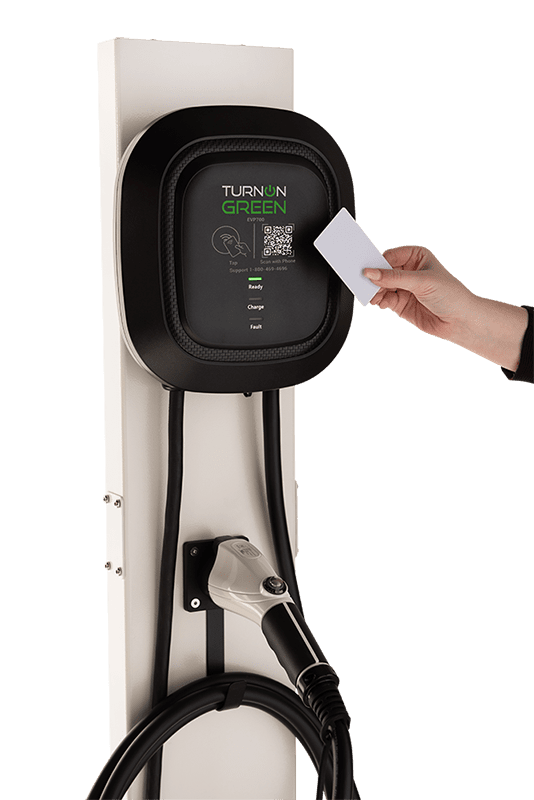

Single Pedestal & Cable Management
Add retractable cable management to a single pedestal.
Dual Pedestal & Cable Management
Add retractable cable management to a dual pedestal.
EVP700 Product Specifications
Input Voltage | Single-Phase 200~240VAC |
Input connection | 3-Wire (L1, L2, GND) |
Maximum Output Power | 7kW |
Output Current | 32A |
Input Cable | Hardwired |
Vehicle Charging Connector | SAE J1772 |
Network Communication | 4G, Wi-Fi, Ethernet |
User Authentication | RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa), QR Code |
Cloud Service | TurnOnGreen Dashboard |
Mobile App | Android/iOS |
Chargepoint Protocol | OCPP 1.6 JSON |
Firmware Update | Over-the-air |
Load Balancing | Dynamic output load sharing |
Display | LED status indicators |
Output Cable Length | 16 ft (5m) or 24ft (7.5m) |
Enclosure Rating | NEMA Type 3R |
Operating Temperatures | -22°F to +122°F (-30°C to +50°C) |
Dimensions (WxHxD) | 12 x 19 x 6 inch (260 x 280 x 100 mm) |
Cooling Method | Natural Cooling |
| Weight | 9 lbs. (4 Kg) |
Mounting Type | Wall mount and pedestal mount |
Input Protection | UVP, OVP, RCD, SPD, Ground Fault Protection |
Output Protection | OCP, OTP, Control Pilot Fault Protection |
EMC/EMI Compliance | FCC Part 15 Class B |
Safety Certification | UL - cULus: UL2594, UL2231-1/-2 |
Charging Interface | SAE J1772 Type 1 Plug |
Energy Efficiency | - |
