- Simultaneous charging at high kW power outputs.
- Rebate eligible with certain programs
- CCS1 and CHAdeMO configurations
- Seamless web-based EV charger management dashboard
- Optional cable management

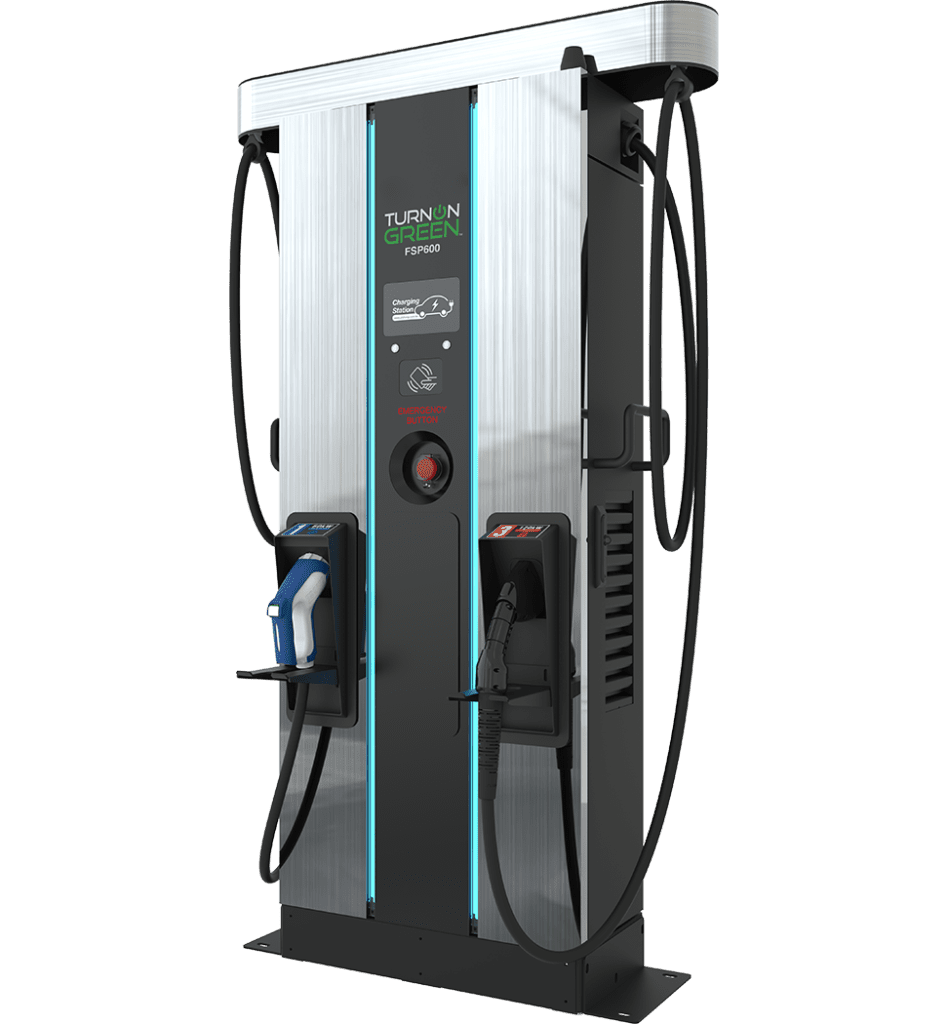

FSP600 (60kW)
Flexible DC Fast Charging
FSP600 offers a user-friendly interface, making it simple and convenient for EV drivers to operate. This 60kW DC fast charger has a small footprint and is simple to install on any commercial property with access to three-phase power. The sleek design and accessibility make this standalone DC fast charger a practical and efficient solution for commercial properties.
Features
Documents
Features
FSP600 Highlights
60kW Power Output
With this robust power level, EV owners can experience quick and efficient charging, making it an ideal choice for those on the go.
Smart Charger
Configure FSP600 for paid authentication, monitor live usage, and set permissions on the TurnOnGreen Dashboard. Stay in control of your charging site.
DC Fast Charging for Commercial Use
Network Capability
The TurnOnGreen Dashboard is a comprehensive, cloud-based EV charger management platform. The dashboard provides a user-friendly interface with useful features for any size business to monitor and manage EV chargers with ease.
- View and analyze real-time charging data
- Track revenue and adjust pricing
- Manage power with advanced active load balancing
- Manage users and set permissions
- Automatic report generation, downloadable at any time
- 24/7 support available via SMS, in-app messaging, or toll-free number
Dealerships and Destinations
The TurnOnGreen FSP600 is a 60kW DC fast charger tailored for rapid recharging. Designed for efficiency and easy installation at auto dealerships, public parking lots, hotels and other commercial properties where space is limited, the FSP600 is simple to install, operate, and maitain.
FSP600 Product Specifications
Maximum Output Power | 60kW |
Output Power | CCS1: 120 A @150~500 Vdc or 63 A @950 Vdc CHAdeMO: 120 A @150~500 Vdc |
Vehicle Connector | CCS1 or CHAdeMO |
Charging Cable Length | 13 feet / 4m |
Input Power | 3-phase, 5-wire, 480 Vac, 100 A maximum |
Grounding system | TN, TT |
Efficiency | > 94% |
Power factor | >0.99 |
Display | 7 inch LCD |
Communication Protocol | OCPP 1.6 JSON |
Vehicle communication interface | ISO 15118 |
Network Connectivity | Ethernet, wi-fi, 4G |
RFID | RFID ISO/IEC 14443 A/B |
NEMA enclosures(NEMA) | NEMA 3R |
Impact Protection | IK10 |
Electrical protection | Over current protection, over voltage protection, over temperature protection, under voltage protection, surge protection device, insulation monitoring device, short circuit protection, over power protection |
Operating temperature | -22 °F to +122 °F / -30 °C to +50 °C |
Dimensions | 27.6 (W) x 70.9 (H) x 13.0 (D) in 700 (W) x 1800 (H) x 331 (D) mm |
Weight | 529 lbs/ 240kg |
Certifications | ETL, FCC |
