- Wall-mount or Pedestal Mount
- Network capable
- CCS1 or CHAdeMO configurations
- 4G, WIFI or Ethernet connectivity

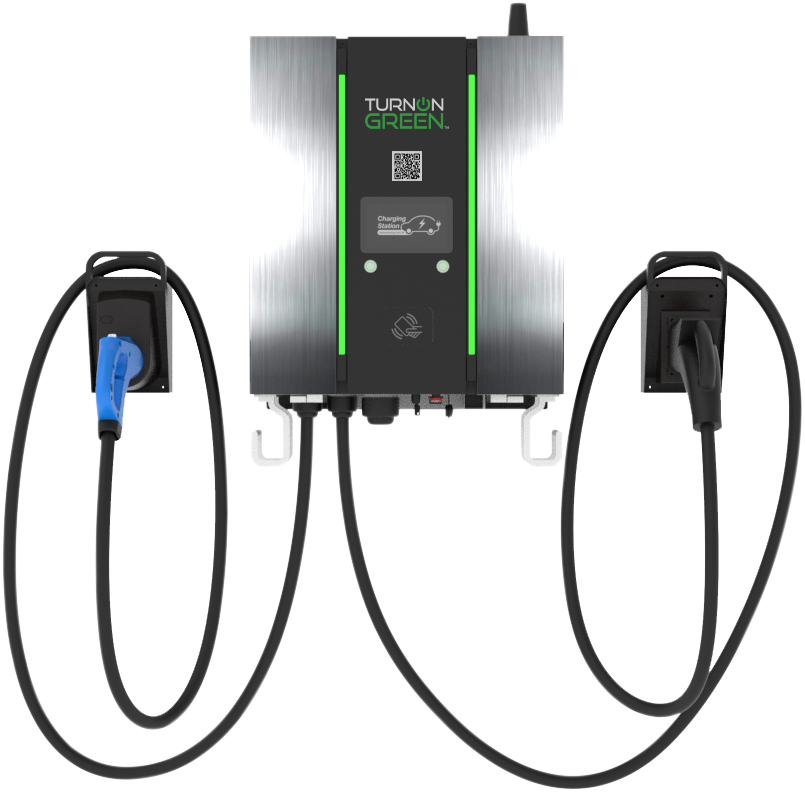

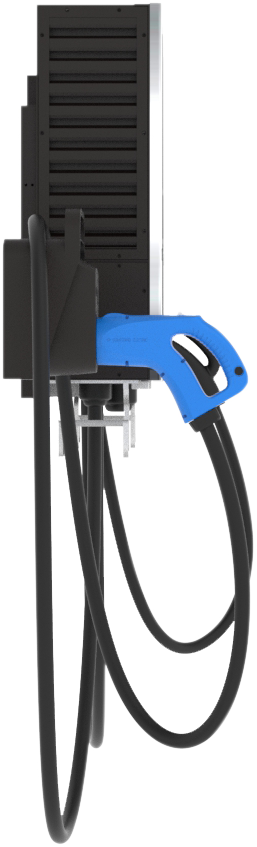

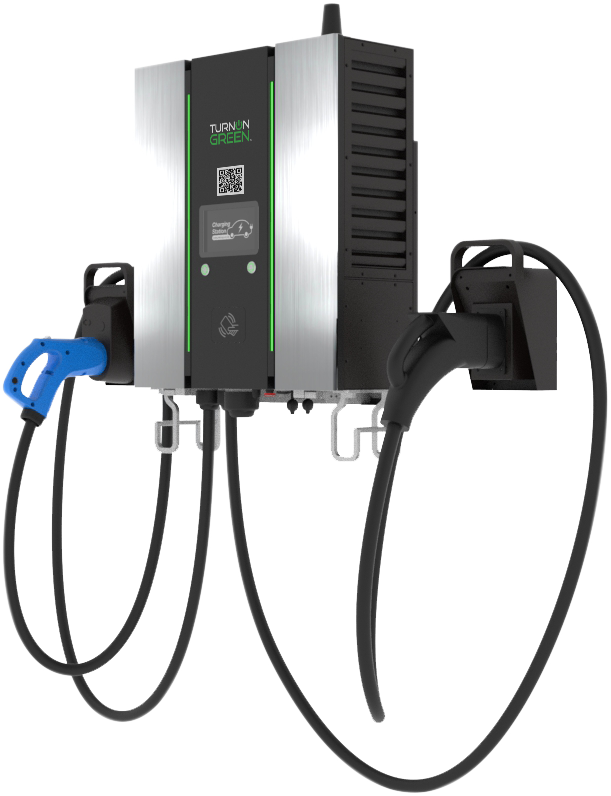

FSP300 (30kW)
Flexible DC Fast Charging
TurnOnGreen FSP300 provides the flexibility of a level 2 charging station, with the power output of a DC fast charger. Mount the FSP300 on a wall or on a pedestal, and provide significant range in minutes.
Features
Documents
Features
FSP300 Highlights
30kW Power Output
DC fast charging with the installation flexibility of a level 2 charging station. Wall-mountable 30kW power output EV charger
Smart Charger
Configure FSP300 for paid authentication, monitor live usage, and set permissions on the TurnOnGreen Dashboard. Stay in control of your charging site.
DC Fast Charging for Commercial Use
Network Capability
The TurnOnGreen Dashboard is a comprehensive, cloud-based EV charger management platform. The dashboard provides a user-friendly interface with useful features for any size business to monitor and manage EV chargers with ease.
- View and analyze real-time charging data
- Track costs and adjust pricing
- Manage power with advanced active load balancing
- Manage users and set permissions
- Automatic report generation, downloadable at any time
- 24/7 support available via SMS, in-app messaging, or toll-free number
Affordable DC Fast Charging
The FSP300 also offers robust durability and reliability, ensuring long-term performance even in demanding fleet environments. With its comprehensive features and ability to meet the specific needs of fleet operations, the FSP300 DC fast charger is an excellent choice for fleet managers seeking a reliable and efficient charging solution. With a small footprint and minimal power requirements, the FSP300 30kW DC fast charger is ideal for autobody shops, hotel valet parking, or workplaces.
FSP300 Product Specifications
Maximum Output Power | 30kW |
Output Power | CCS1: 60 A @150~500 Vdc or 31.5 A @950 Vdc CHAdeMO: 60 A @150~500 Vdc |
Vehicle Connector | CCS1 or CHAdeMO |
Charging Cable Length | 13 feet / 4m |
Input Power | 3-phase, 5-wire, 480 Vac, 50 A maximum |
Grounding system | TN, TT |
Efficiency | > 94% |
Power factor | >0.99 |
Display | 7 inch LCD |
Communication Protocol | OCPP 1.6 JSON |
Vehicle communication interface | ISO 15118 |
Network Connectivity | Ethernet, wi-fi, 4G |
RFID | RFID ISO/IEC 14443 A/B |
NEMA enclosures(NEMA) | NEMA 3R |
Impact Protection | IK10 |
Electrical protection | Over current protection, over voltage protection, over temperature protection, under voltage protection, surge protection device, insulation monitoring device, short circuit protection, over power protection |
Operating temperature | -22 °F to +122 °F / -30 °C to +50 °C |
Dimensions | 24.0 (W) x 27.1 (H) x 9.1 (D) in 610 (W) x 690 (H) x 230 (D) mm |
Weight | 176 lbs / 80 kg (single gun) 194 lbs / 88 kg (dual guns) |
Certifications | ETL, FCC |
