- 5” LCD Screen
- Modern, Ergonomic Design
- Supports Dynamic Load Distribution
- RFID Card Capable/QR Code Capable
- Universally Compatible J1772 Connector (Tesla Adapter Required)
- NEMA 3R Protection for Indoor and Outdoor Installations
- Flexible 16’ cable to minimize clutter and potential cable damage.
- Certified to function at temperatures between -22 °F to 122 °F
- Wall and Pedestal Mountable
- Multiple Authentication Methods – Web, RFID, or TurnOnGreen App

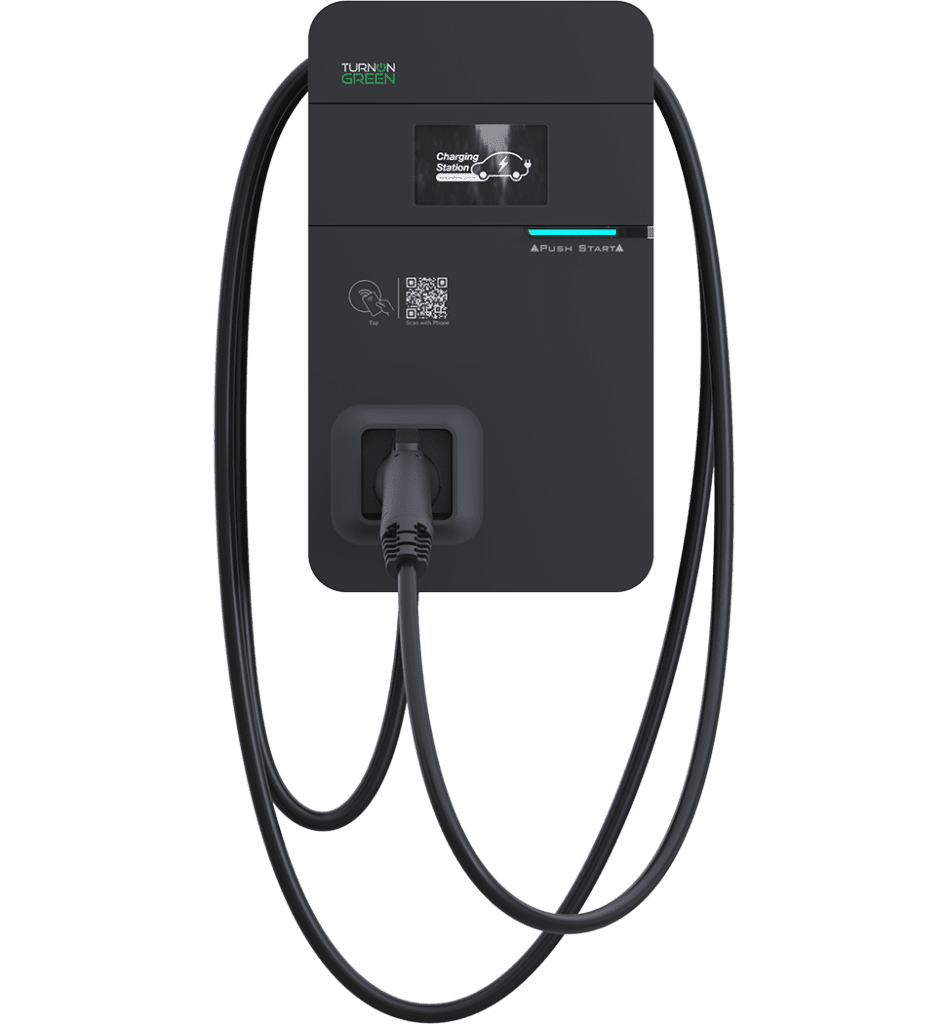

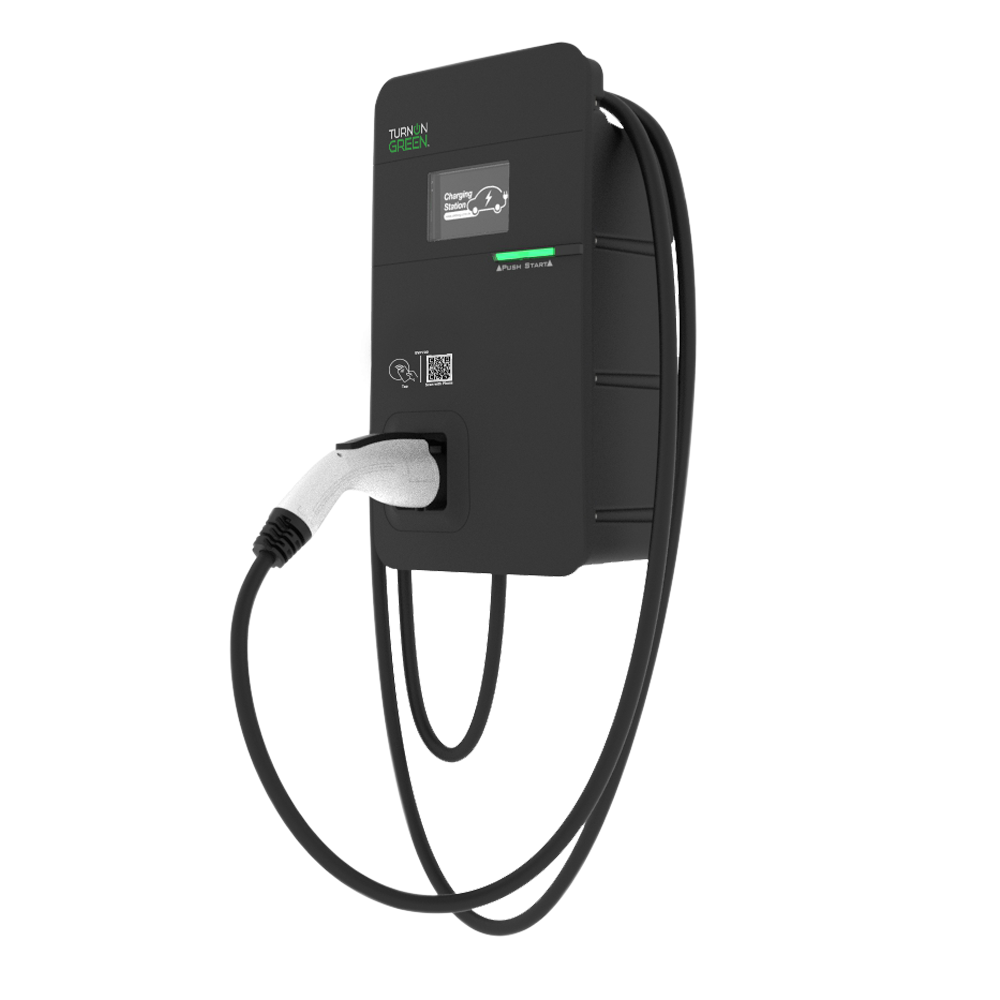

EVP1100 (11kW)
LEVEL 2 CHARGER (32A-48A)
Features
Documents
Features
TurnOnGreen EVP1100 is a 48A max level 2 EV charger. Energy star certified, rebate eligible, with adjustable power settings, the EVP1100 Level 2 EV charger is ideal for hotels, fleets, multifamily properties, workplaces, commercial retail and even home use.
EVP1100 Highlights
Faster Charging
With the ability to provide a remarkable 30-35 miles of range per hour of charging, EVP1100 is the ideal choice for daily use and those quick, on-the-go top-ups
Load Balancing
Experience seamless power distribution with our EVP1100’s advanced Load Balancing feature, optimizing your EV charging efficiency.
Rebate Eligible
TurnOnGreen’s EVP1100 has been certified to meet the requirements for most programs offering EV charger installation incentives.
Network Capability
The TurnOnGreen Dashboard is a comprehensive, cloud-based EV charger management platform. The dashboard provides a user-friendly interface with useful features for any size business to monitor and manage EV chargers with ease.
- View and analyze real-time charging data
- Track revenue and adjust pricing
- Manage power with advanced active load balancing
- Manage users and set permissions
- Automatic report generation, downloadable at any time
- 24/7 support available via SMS, in-app messaging, or toll-free number

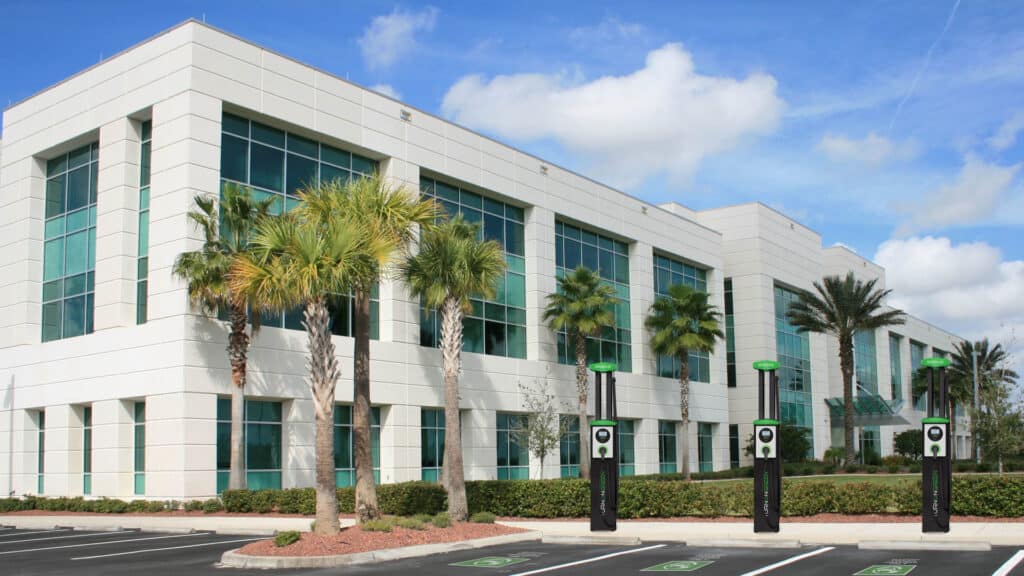

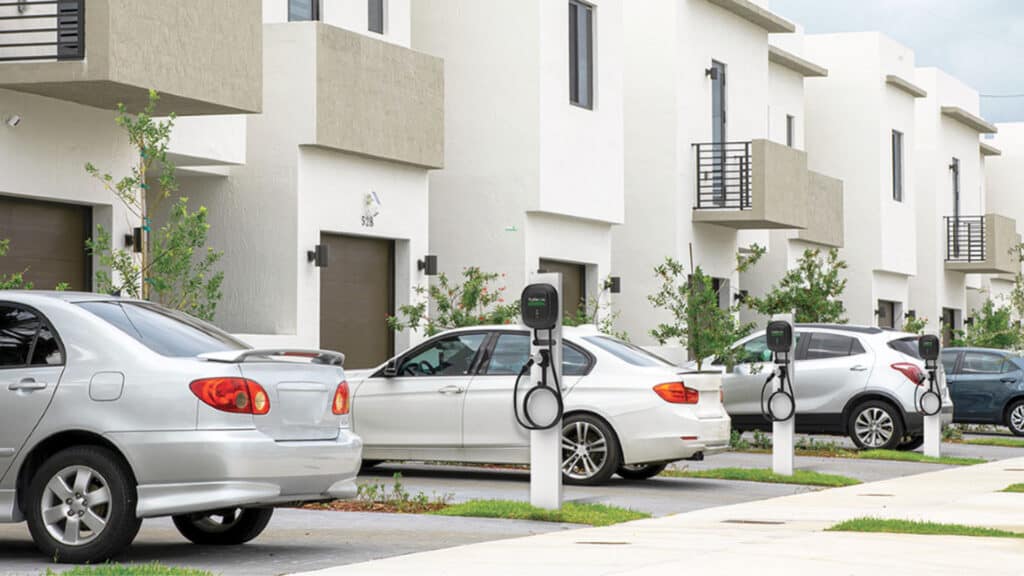

Level 2 EV Charging for Commercial Use
Custom EV Charging Solutions
for hotels, workplaces, fleets, or public charging spaces.
- 7kW-11kW Power Output
- Charge Drivers for Energy
- Restrict Access
- Create Tiered Pricing
- Monitor Fleet Vehicles
- Send Push Notifications
- ENERGY STAR® Certified

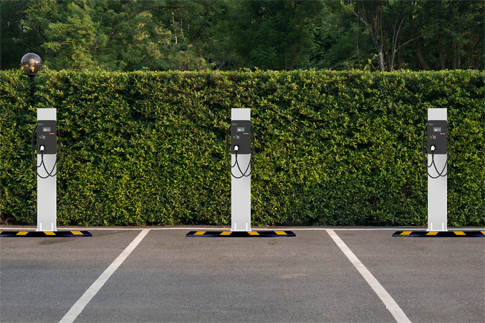

Flexible Installation
Maximize all levels of infrastructure with hardware and software driven load balancing. Power multiple chargers from a single circuit, and manage power output through load balancing technology.
- 4 to 1 charging
- Local Load balancing
- Load balance via OCPP
Rebate Eligible
TurnOnGreen’s EVP1100 has been certified to meet the requirements for most programs offering EV charger installation incentives. Representatives are available to help you secure funding for your EV charging project.
Installation Types
See how EVP1100 fits in your parking structure.

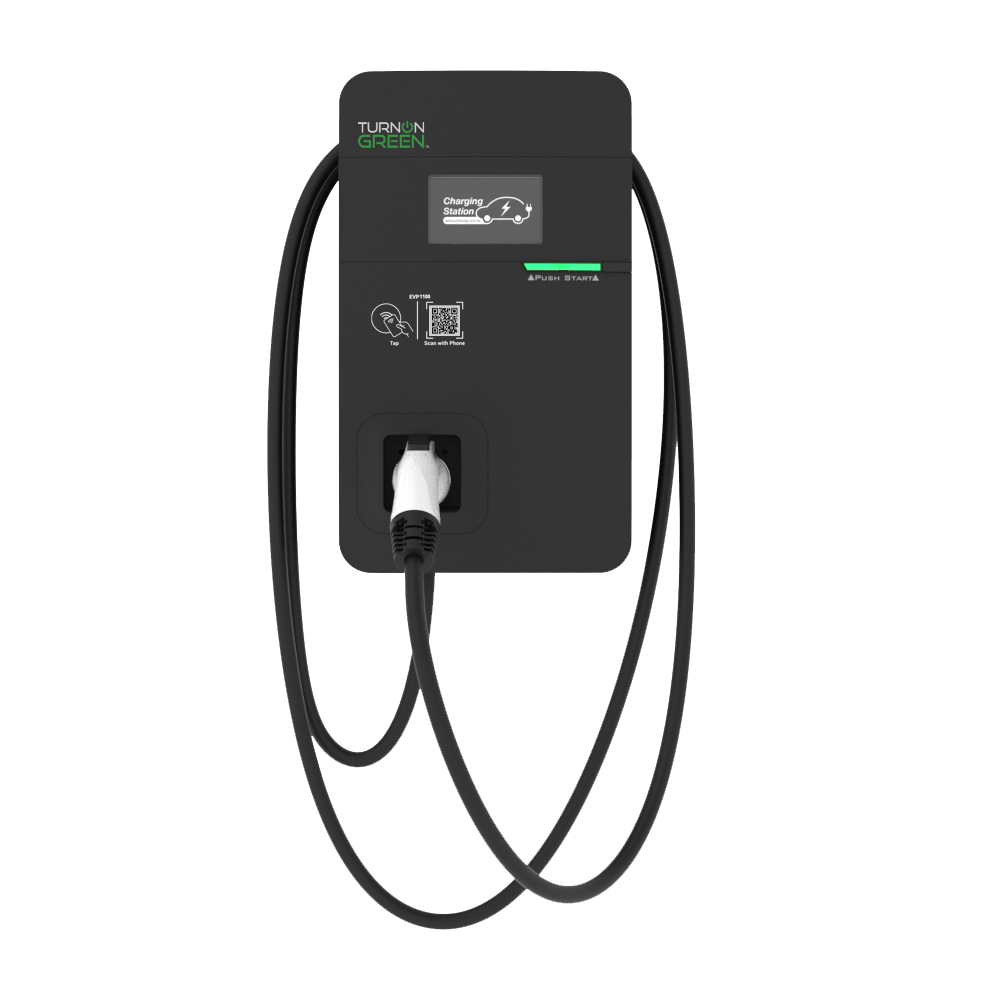

Wall Mount
EVP1100 is wall mount ready out-of-the-box. Wrap the cord around the charger and dock1

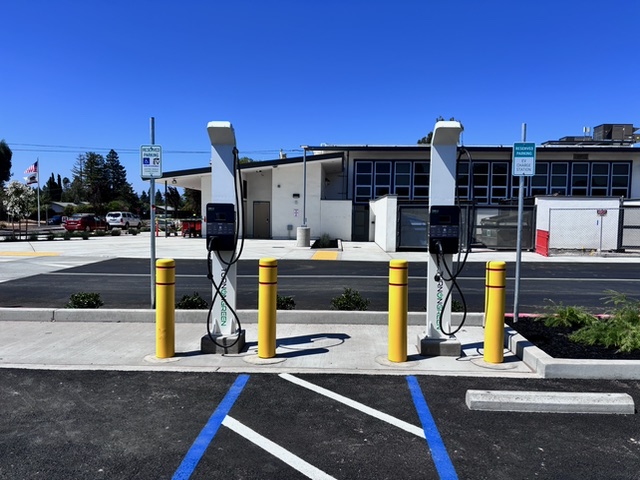

Single Pedestal
Mount a single EVP1100 on a rectangle pedestal. Additional cable management optional.
Single Pedestal & Cable Management
Add retractable cable management to an individual pedestal mounted EVP1100.

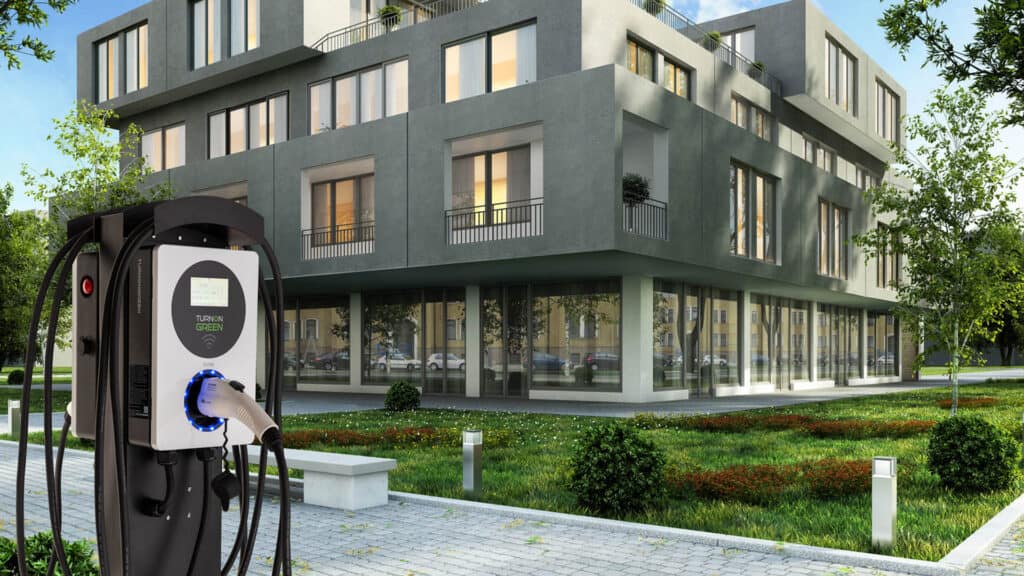

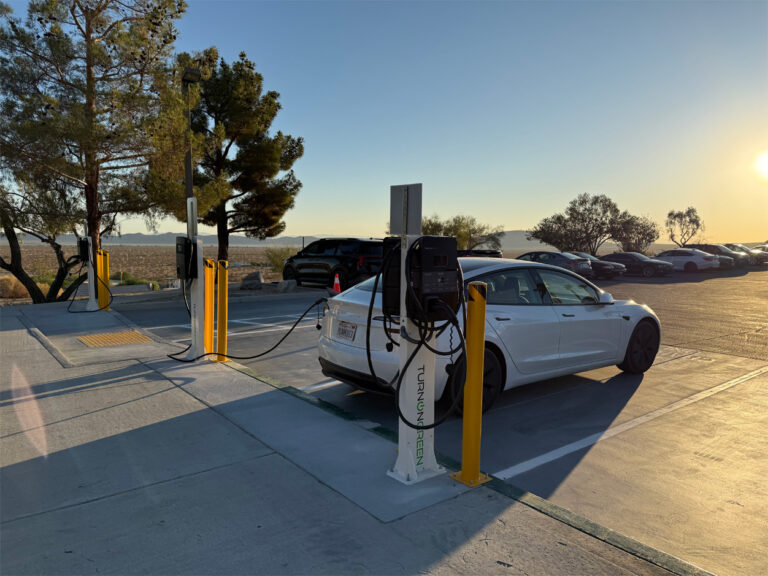

Dual Pedestal & Cable Management
Mount two EVP1100’s back-to-back with retractable cable management.
EVP1100 Product Specifications
| Input voltage | Single-Phase 200~240Vac |
| Input connection | 3-Wire (L1, L2, GND) |
| AC Power Frequency | 50Hz / 60Hz |
| Maximum output power | 11.4kW |
| Maximum output current | 48A |
| Input cable | Hard-wired |
| Vehicle charging connector | SAE J1772 |
| Network communication | Ethernet / Wi-Fi / 4G |
| User Authentication | RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa), QR Code, ISO 15118 |
| Cloud service | TurnOnGreen |
| TOG mobile app | Android / iOS |
| Chargpoint protocol | OCPP 1.6 JSON (ready for OCPP 2.0) |
| Firmware update | Over the air / via TOG mobile app |
| Load balancing | Dynamic output load sharing |
| Display | 5.0 inch LCD |
| Output cable length | 16 feet (5 m) |
| Encloser rating | NEMA Type 4 |
| Operating temperature | -22°F to +122°F (-30°C to +50°C) |
| Dimensions (W x H x D) | 12 x 19 x inch (295 x 505 x 150 mm) |
| Weight | 20 lbs. (9.0Kg) |
| Cooling method | Natural cooling |
| Mounting type | Wall-mount / pedestal-mount |
| Input protection | UVP, OVP, RCD, SPD, Ground Fault Protection |
| Output protection | OCP, OTP, Control Pilot Fault Protection |
| EMC / EMI Compliance | FCC Part 15 Class B |
| Safety certification | UL - cULus: UL2594, UL2231-1/-2 |
| Charging Interface | SAE J1772 Type 1 Plug |
| Energy efficiency | ENERGY STAR |
