- 5” LCD Screen
- Modern, Ergonomic Design
- Supports Dynamic Load Distribution
- RFID Card Capable/QR Code Capable
- Universally Compatible J1772 Connector
- NEMA 4 Protection
- 16’ cable to minimize clutter and potential cable damage.
- Certified to function at temperatures between -22 °F to 122 °F
- Wall and Pedestal Mountable
- Multiple Activation Methods

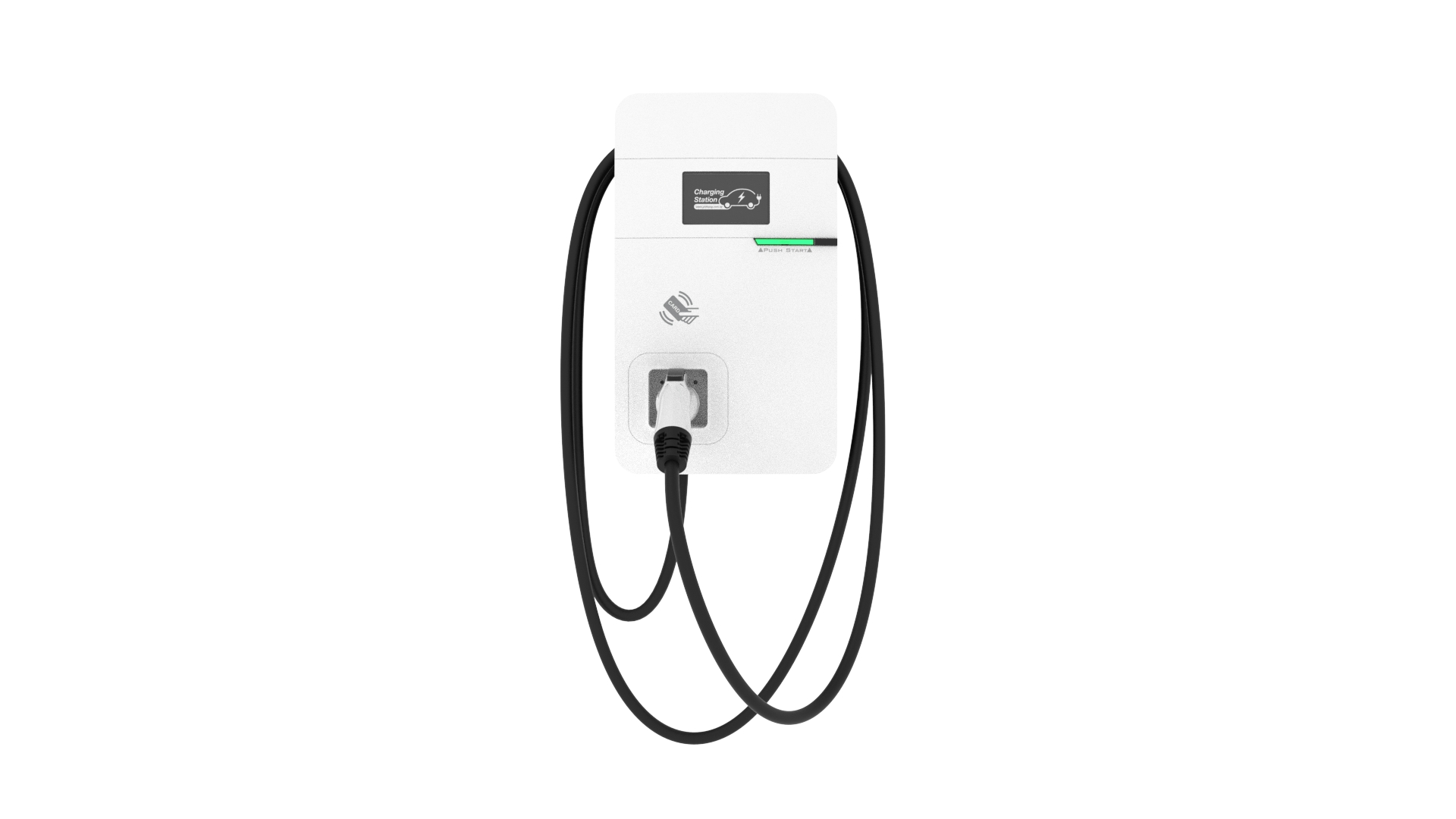

EVP1900 (19kW)
LEVEL 2 CHARGER (80A)
The EVP1900 is the highest powered Level 2 EV Charger available in North America. This 80 Amp EV Charger is the ideal choice for fleets, commercial properties, and new construction.
Features
Documents
Features
EVP1900 Highlights
19kW Power Output
EVP1900 is on the highest end of Level 2 charging power output. Gain upwards of 40 miles of range per hour of charging with 19kW of power output, or a full battery overnight. (Not all vehicles can accept 19kW of AC power.)
Smart Charger
Configure EVP1900 for paid authentication, monitor live usage, and set permissions on the TurnOnGreen Dashboard. Stay in control of your charging site.
Level 2 EV Charging for Commercial Use
Network Capability
The TurnOnGreen Dashboard is a comprehensive, cloud-based EV charger management platform. The dashboard provides a user-friendly interface with useful features for any size business to monitor and manage EV chargers with ease.
- View and analyze real-time charging data
- Track revenue and adjust pricing
- Manage power with advanced active load balancing
- Manage users and set permissions
- Automatic report generation, downloadable at any time
- 24/7 support available via SMS, in-app messaging, or toll-free number
Level 2 Charging for Fleets
The EVP1900 offers robust durability and reliability, ensuring long-term performance even in demanding fleet environments. With its comprehensive features and ability to meet the specific needs of fleet operations, the EVP1900 level 2 EV charger is an excellent choice for fleet managers seeking a reliable and efficient charging solution.
Rebate Eligible
TurnOnGreen’s EVP1900 has been certified to meet the requirements for most programs offering EV charger installation incentives. Representatives are available to help you secure funding for your EV charging project.
Installation Types
See how EVP1900 fits in your parking structure.
Wall Mount
EVP1900 is wall mount ready out-of-the-box. Wrap the cord around the charger and dock.
Single Pedestal
Mount a single EVP1900 on a rectangle pedestal. Additional cable management optional.
Single Pedestal & Cable Management
Add retractable cable management to an individual pedestal mounted EVP1900.
Dual Pedestal & Cable Management
Mount two EVP1900’s back-to-back with retractable cable management.
EVP1900 Product Specifications
Input Voltage | Single-Phase 200~240VAC |
Input connection | 3-Wire (L1, L2, GND) |
Maximum Output Power | 19.2 kW |
Output Current | 80A |
Input Cable | Hardwired |
Vehicle Charging Connector | SAE J1772 |
Network Communication | 4G, Wi-Fi, Ethernet |
User Authentication | RFID (ISO/IEC 14443A/B, ISO/IEC 15693, FeliCa), QR Code |
Cloud Service | TurnOnGreen Dashboard |
Mobile App | Android/iOS |
Chargepoint Protocol | OCPP 1.6 JSON |
Firmware Update | Over-the-air |
Load Balancing | Dynamic output load sharing |
Display | 5.0” LCD Screen |
Output Cable Length | 16 ft (5m) or 24ft (7.5m) |
Enclosure Rating | NEMA Type 4 |
Operating Temperatures | -22°F to +122°F (-30°C to +50°C) |
Dimensions (WxHxD) | 12 x 19 x 6 inch (260 x 280 x 100 mm) |
Cooling Method | Natural Cooling |
| Weight | 20 lbs. (9.0Kg) |
Mounting Type | Wall mount and pedestal mount |
Input Protection | UVP, OVP, RCD, SPD, Ground Fault Protection |
Output Protection | OCP, OTP, Control Pilot Fault Protection |
EMC/EMI Compliance | FCC Part 15 Class B |
Safety Certification | UL - cULus: UL2594, UL2231-1/-2 |
Charging Interface | SAE J1772 Type 1 Plug |
Energy Efficiency | Energy Star |
